Our Products
Maximum Simplicity & Ease of Use

Wave Solder Pallets

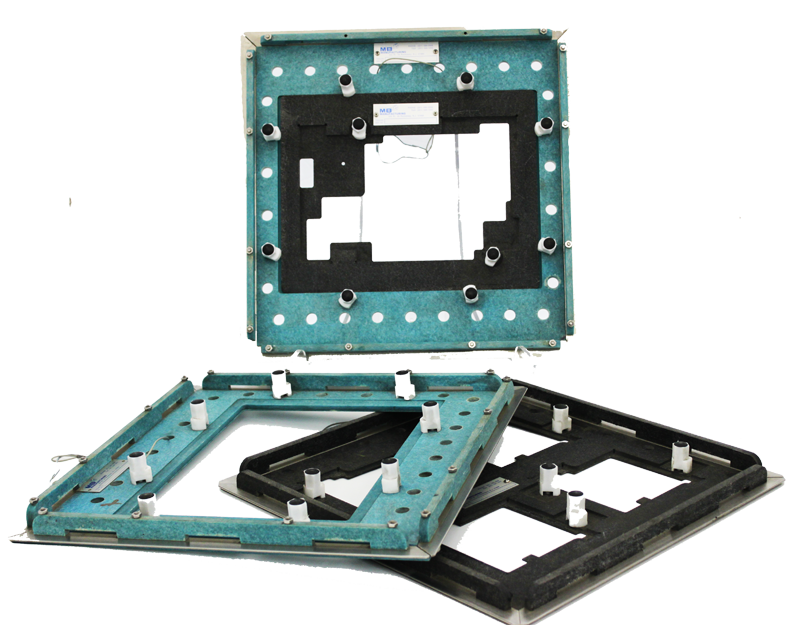

Wave_Solder_Fixture_5

Our Wave Solder Fixtures increase productivity and eliminate defects in your pcb assembly process.

Wave Solder Pallet with Snap on Top Hat

wave_solder_with_snap_on_top_hat

Wave Solder Pallet with Snap on Top Hat, spring loaded hold down and coil locator makes for perfect PCB’s every time. Simple and fast error proof orientation, with the Ultimate Cross Bar.

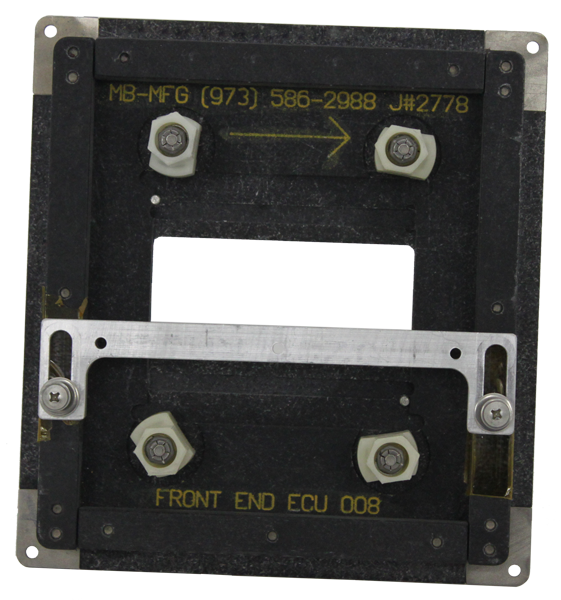

Wave Solder Pallet

wave_solder_pallet

Fast acting, cost effective slide to hold down a row of relays. Features titanium corners to eliminate edge wear in a high volume operations.

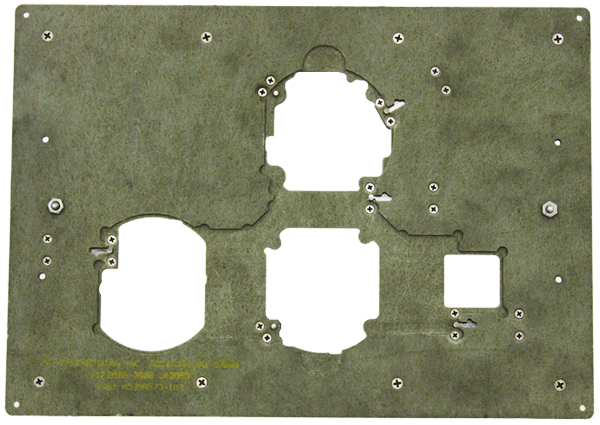

Full Process Carrier

full_process_carrier_new

Completely automate the PCB assembly of mixed technology boards.

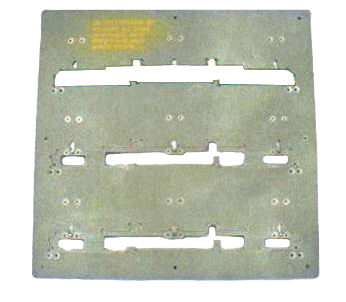

Full Process Carrier for Rigid Flex Assembly

smt_pallet

Features spring loaded pins flush with the top of the PCB forcing the assembly into position for automatic and accurate fine pitch placement. Customers with conventional machines would be unable to obtain such accuracy without this unique tool.

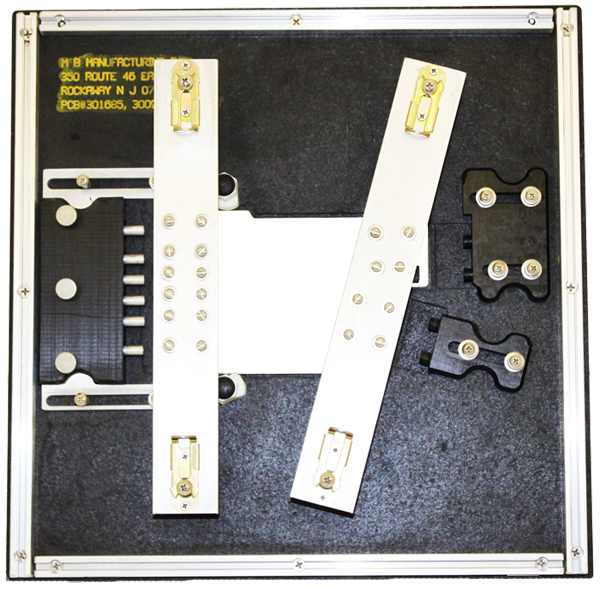

Dedicated Wave Solder Fixture

dedicated_wave_solder_fixture_1

Designed to eliminate solder skipping, drag out, and add better connector support.

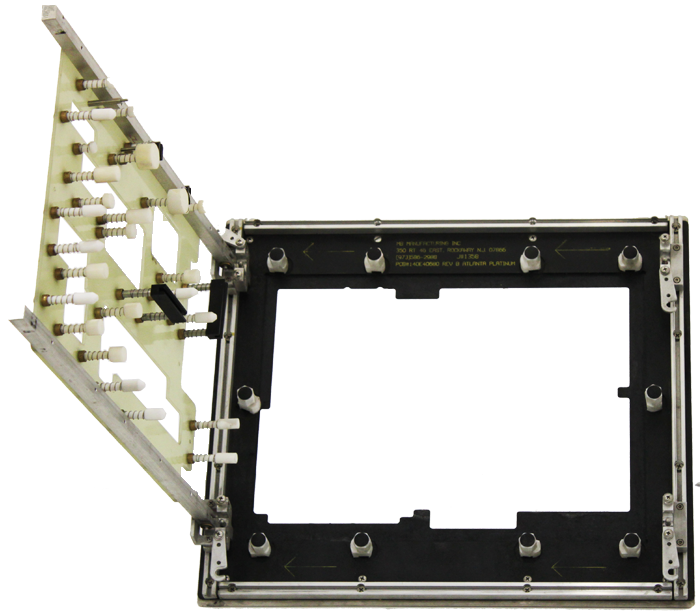

Dedicated Wave Solder Pallet

dedicated_wave_solder_pallet_1

Unique hinged crossbar has backstop to keep it at the proper angle when open.

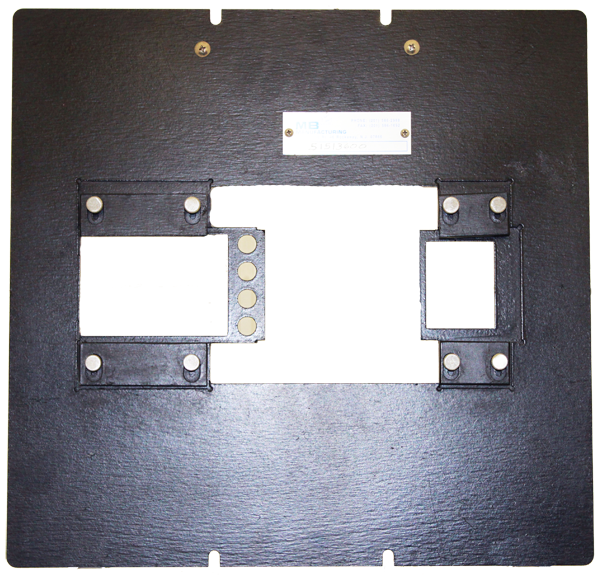

Full Process Carrier for Silicone Chips

full_process_carrier_1

Silicone chips are wire bonded to the PCB.

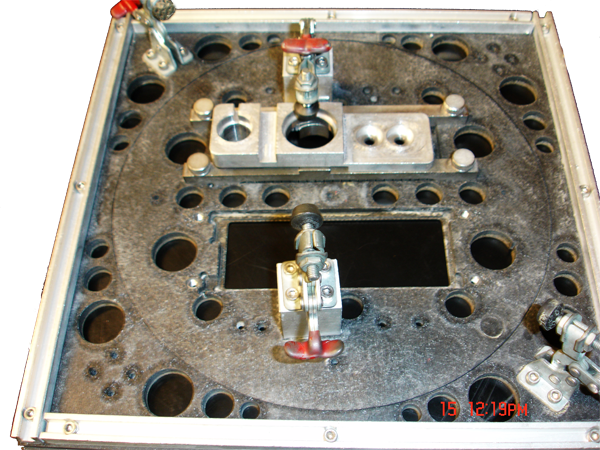

Rotary Wave Solder Pallet

rotarypalletsparts_1

Rotary wave solder pallet featuring stainless steel bars that were made using wire EDM.

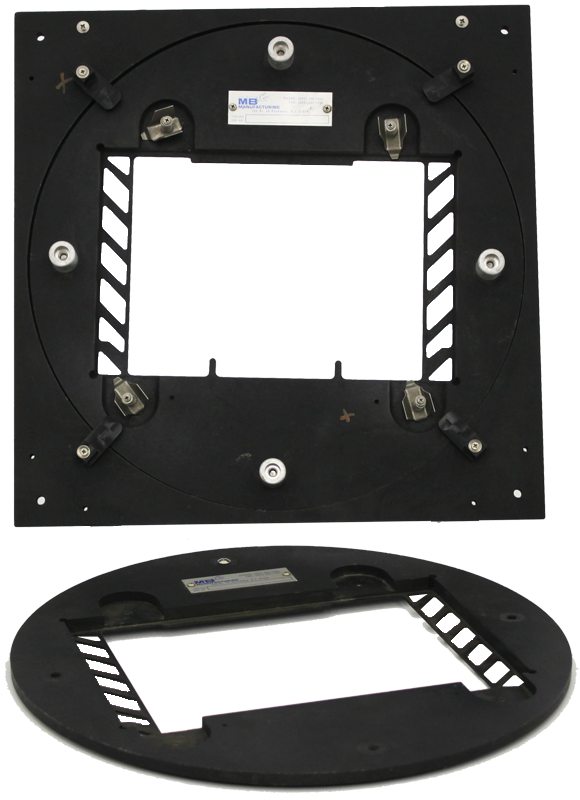

Mother Daughter Pallet

mother_daughter_fixture

Dedicated mother daughter pallet with rotary fixtures.

Over 27 Years of Innovation

A leader in the electronics industry, providing unsurpassed expertise.

Quality assurance - Mission accomplished

We engineer, manufacture, and assemble all your custom PCB assembly tools.

Fastest delivery in the industry!

Our friendly staff is always available to assist you - 24 hour quoting.
