Maximum Simplicity & Ease of Use

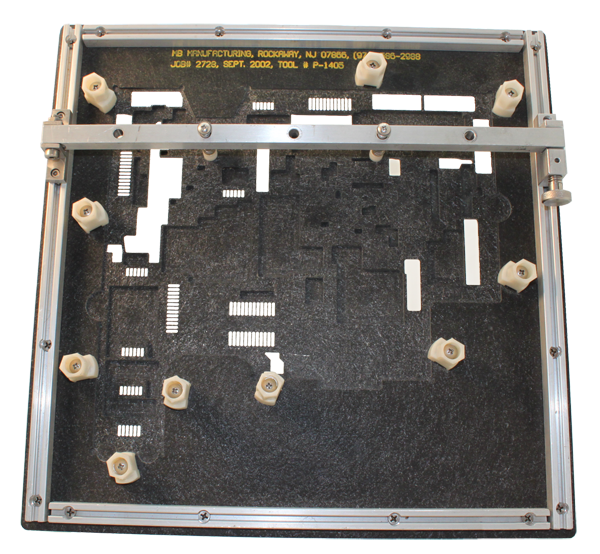

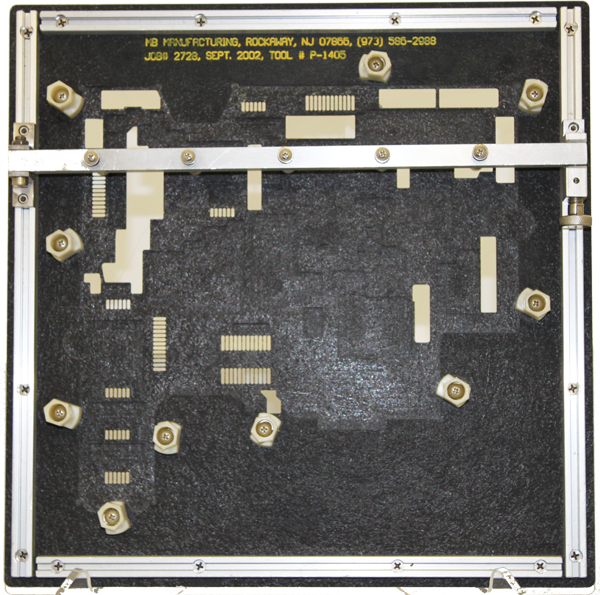

Pallet shown has a snap on cross bar with component locator and component hold downs.  Cross bar also acts as on inspection template for all through hole parts.

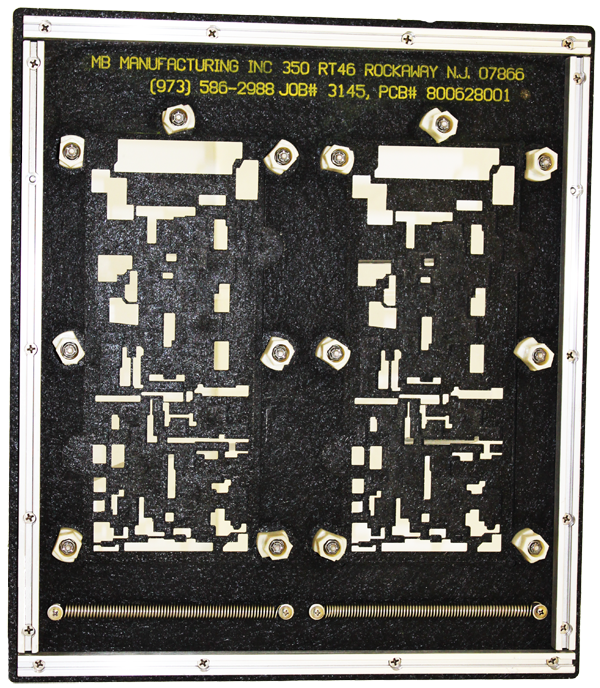

A simple but cost effective method that uses extension spring to hold wires into place for easy soldering.

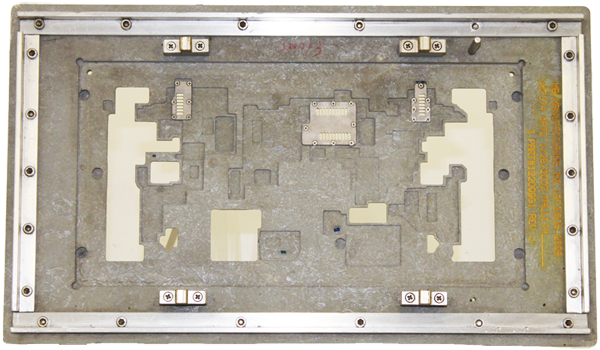

Selective Solder Pallet with removable crossbar. Spring loaded plungers hold components in place. Threaded inserts are also used to fasten the PCB to the pallet, ensuring flux and solder will not flood the tool. The back of the solder pallet is slotted, chamfered and pocketed to help the solder flow into smaller openings.

This pallet is able to eliminate bridging problems often faced by customers.

With MB Manufacturing’s continuous improvement strategy we have developed the ultimate selective solder fixture out of a combination of titanium and composite, incorporating the latest in flow technologies to eliminate skips and bridges on a selective solder pallet that will last for years in a high production environment.

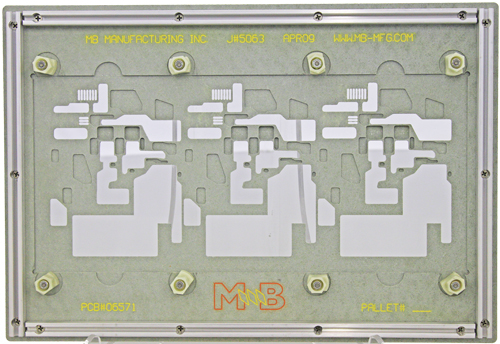

Our Selective Wave Solder Fixtures increase productivity and reduce defects on your mixed technology boards.

This Selective Wave Solder Pallet has a hinged cross bar with spring plungers and pressure pads to prevent parts from lifting or tilting in the wave solder process

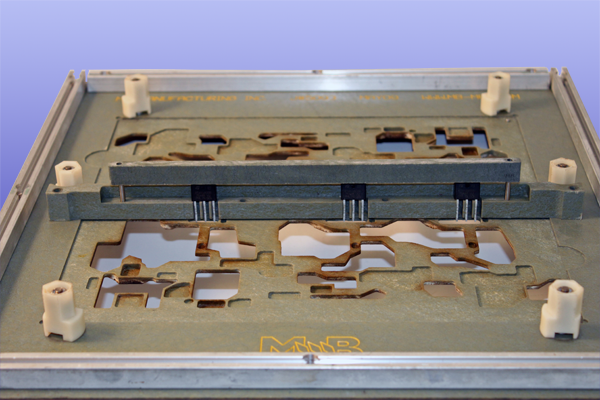

Selective Solder Fixture with Special Component Locating Bar

MB-Mfg now introduces state of the art component holddowns and support bar mechanisms.  The solder pallet features quick simple loading of parts.  Holding components to extremely accurate heights of the PCB, while maintaining a 90 degree orientation to the circuit board.

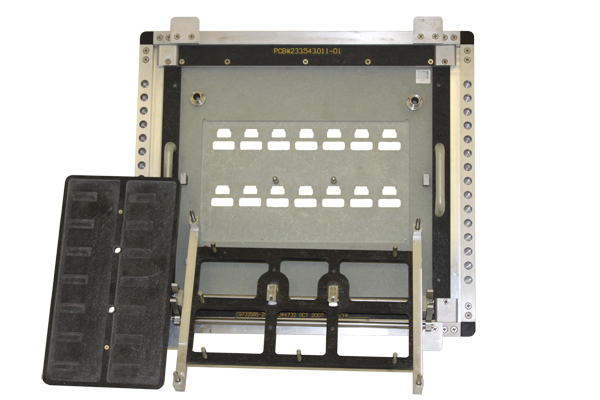

This selective solder pallet features a removeable crossbar and was made for a high volume PCB to be run on a Seho Wave Solder Machine.

Selective solder fixtures protect bottom side SMT components & eliminate the risk of loosing parts in the solder.

A pallet able to successfully mask .220" tall bottom side parts that are just .015" away from the thru-hole pads requiring solder.
